KAFLLA Garage Lifting and Fuel-Transfer Equipment, Rated Where You Can Check It

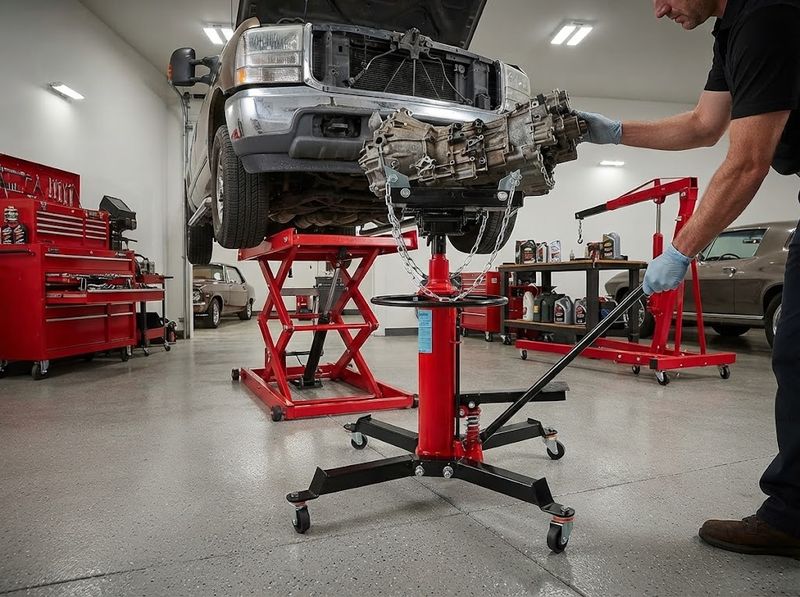

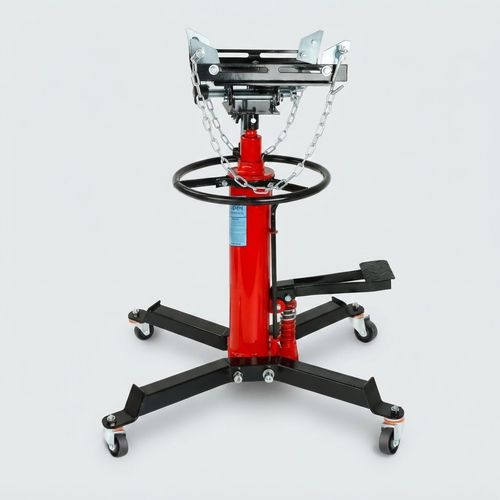

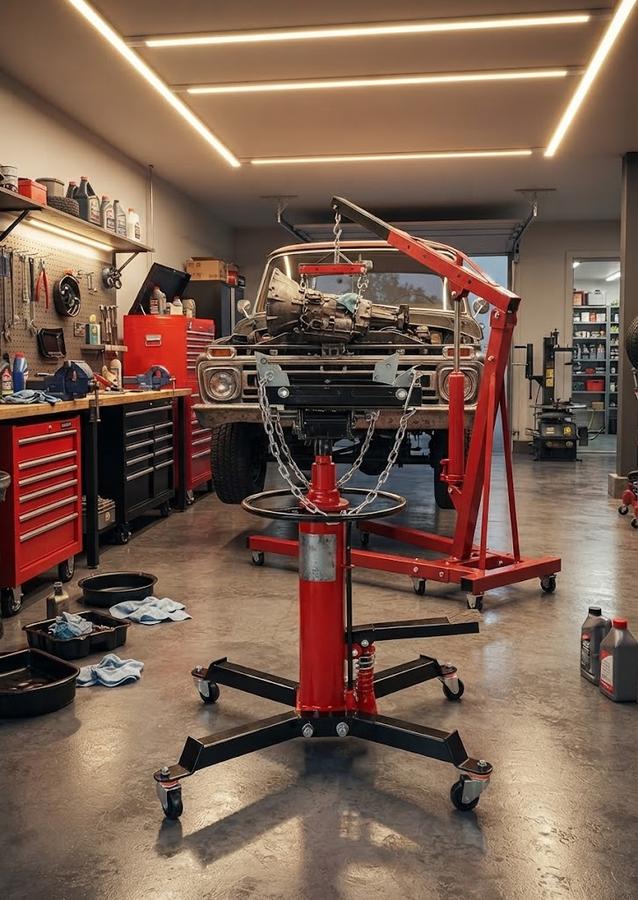

Drain the fluid, then roll the saddle under the case and center the load before anything lifts. Chain the transmission down, tilt the saddle within its 30-degree range to match the bellhousing angle, and unbolt. Pump the foot pedal to raise or crack the release valve to lower, moving in small increments while watching the crossmember clear.

Ramps need a straight approach roughly two car lengths long so the tires roll on without steering correction mid-climb. An engine hoist needs its wide-leg base clear on three sides plus room to roll a loaded boom back from the bumper. In a one-car garage, park the second vehicle outside before you start.

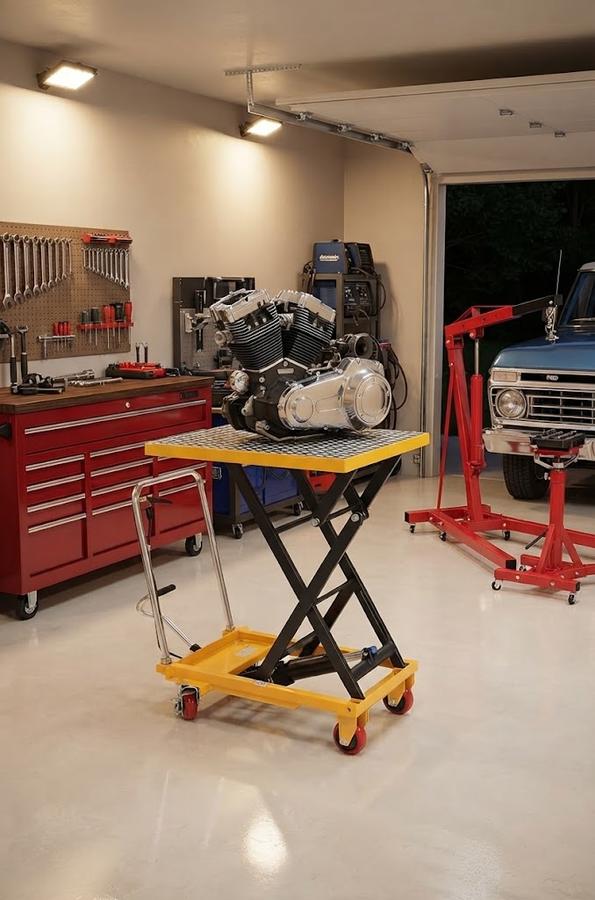

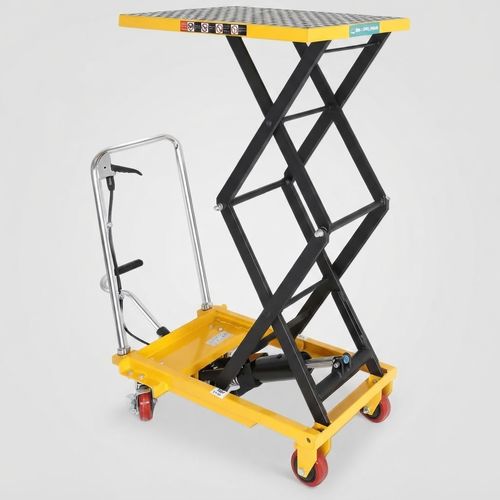

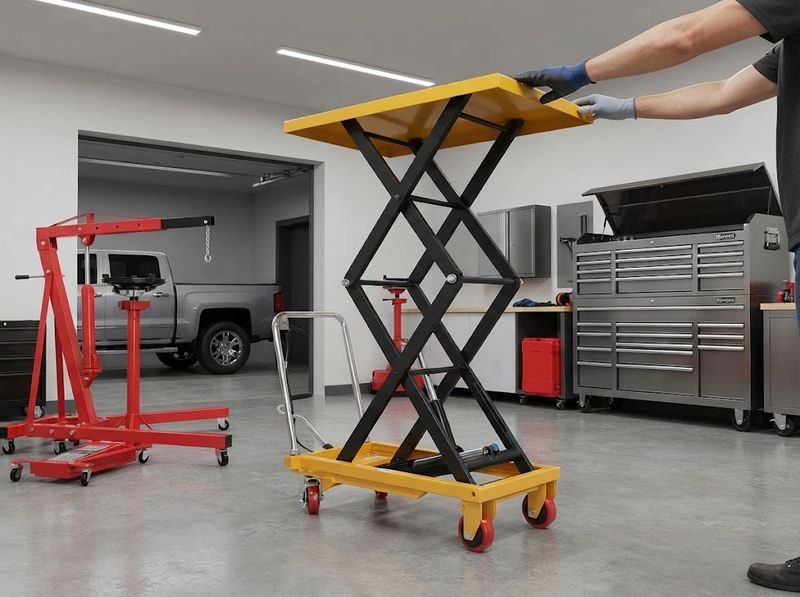

On the lift table cart, the height limiter stops upward travel at the top of the range even while the pump keeps stroking: the handle goes light and the platform stops rising. The safety valve bleeds pressure rather than letting an overload ride. Load the deck, raise it, and watch it hold steady for a full minute before working underneath.

Subframes, differentials, transfer cases, and driveshafts all sit on the same saddle. The 30-degree tilt and the telescopic range matter more than what the part is called. Keep the load centered and chained, and stay under the 1,800-lb rating. A wide, flat component such as a fuel tank needs a support plate across the saddle first.

Reinforced frame points only: subframe rails, tow hooks, or the stabilizer-bar mounts behind the wheels. A pinch weld alone bends under a stand and dents the sill. Check the owner's manual diagram before the first lift. When ramps carry the front and stands carry the rear, chock the wheels still touching the ground.

Line the ramps square to each front tire, then creep up in first gear with steady throttle and no steering input. Set the parking brake, leave the transmission in park or in gear, and chock the rear wheels before sliding underneath. On a low front bumper, a strip of plywood ahead of each ramp softens the approach angle.

Approach angle decides it. The low-profile platform clears many lowered sedans, and owners of lowered cars report laying a plank ahead of the ramp when the bumper contacts first. Once the tires sit on the platform, the built-in 5-ton jack raises it further for the working clearance underneath.

Fold the boom and legs against the frame, then roll it on its six swivel casters into the corner behind the workbench. Store the ram fully retracted so the seal stays seated and the rod stays clean. Keep the load leveler chained to the boom hook rather than loose on a shelf where it disappears.

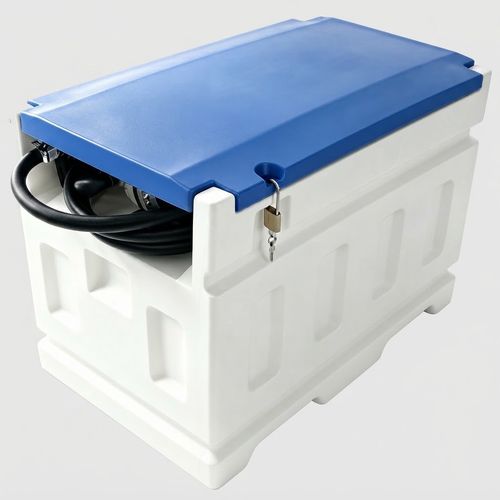

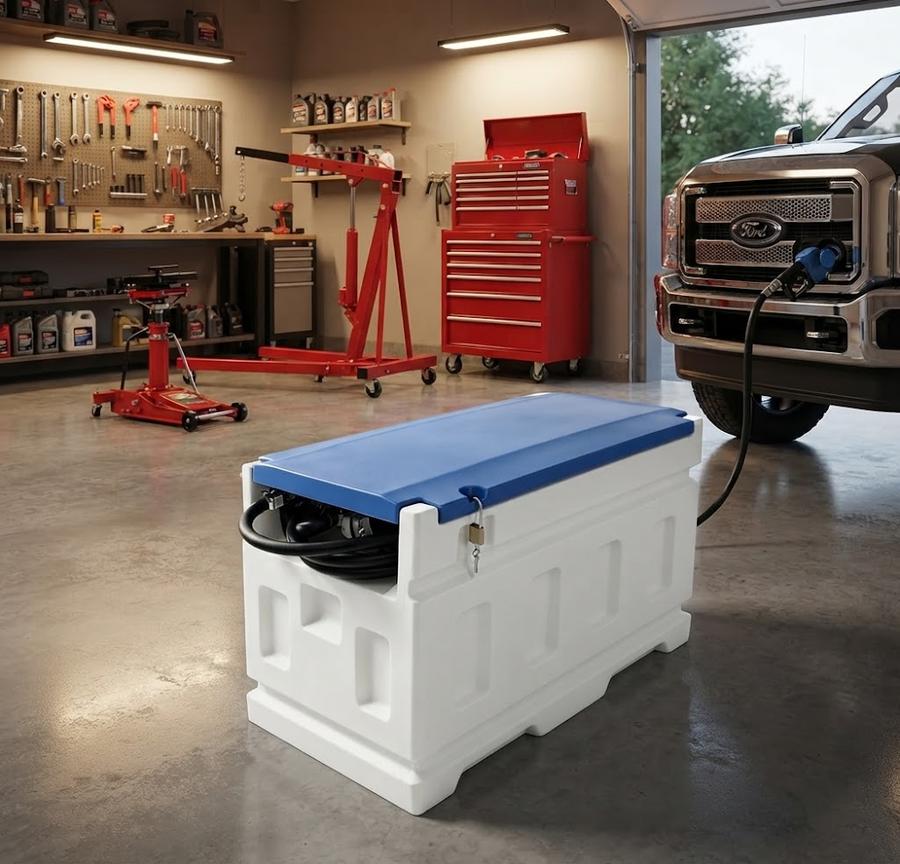

With one, unless you already own transfer gear matched to the tank's fittings. Gravity alone dribbles DEF and invites contamination at the fill port. The 48-gallon tank here ships with a 12V self-priming pump rated at 10 GPM, a 13-ft hose, an auto nozzle, and a lockable lid, so nothing else needs sourcing.

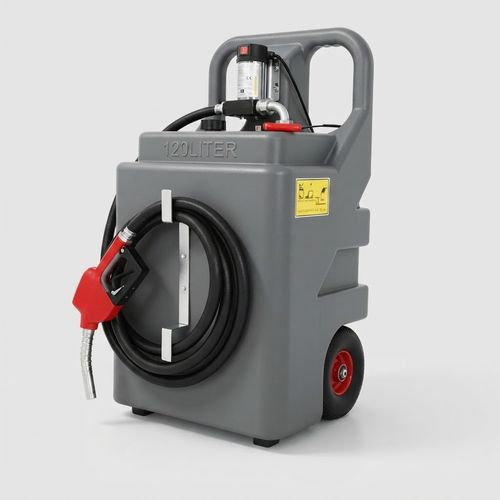

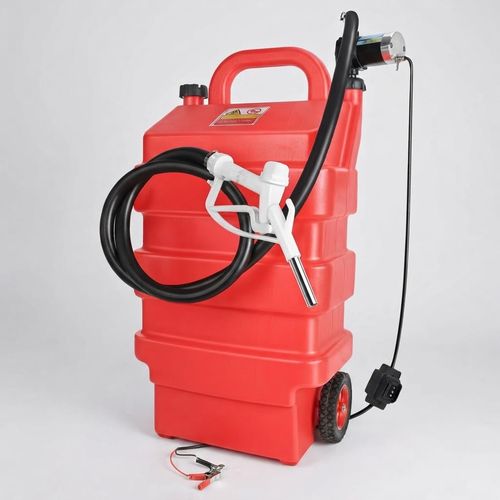

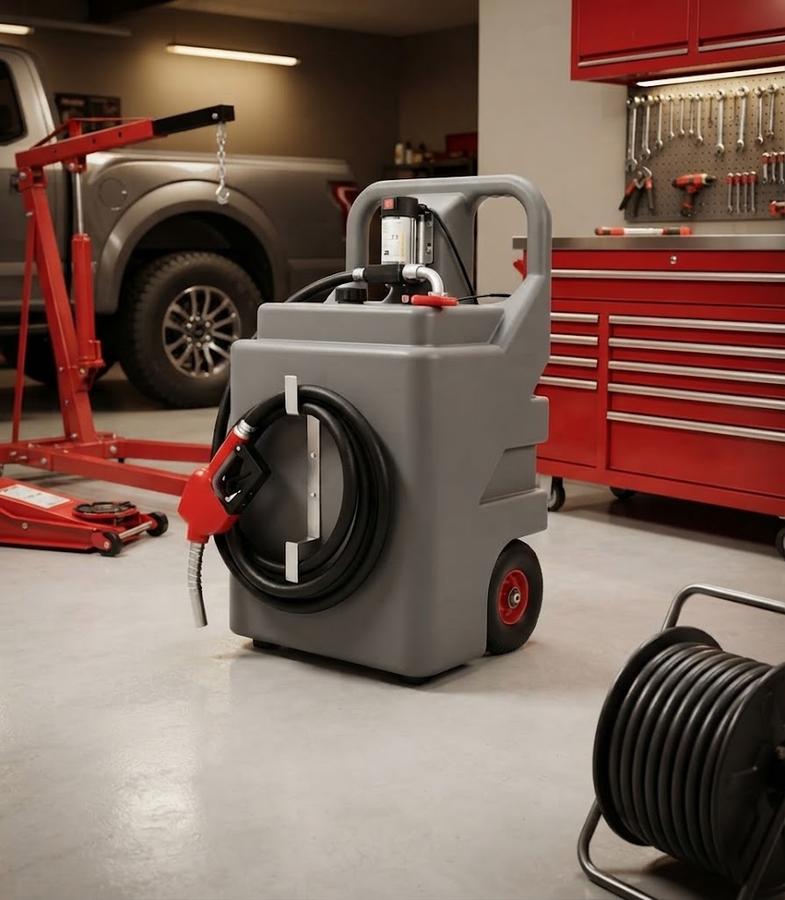

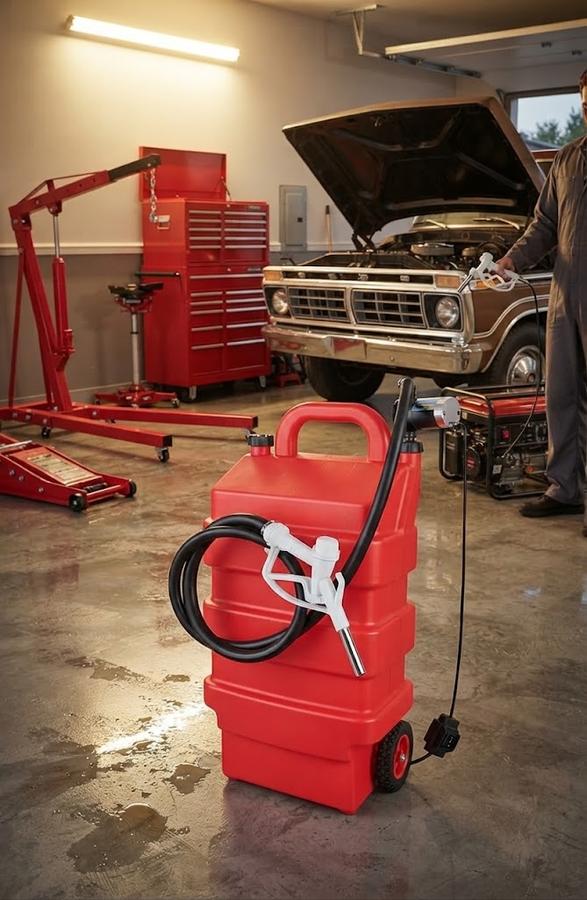

The 16-gallon caddy is rated for gasoline, diesel, kerosene, and mineral oil through the same 3.7 GPM pump. Drain the line and run the pump dry between fuel types so residue does not carry into the next tank. The larger 32-gallon caddy is diesel only, because gasoline in a diesel-scoped tank creates a static hazard.

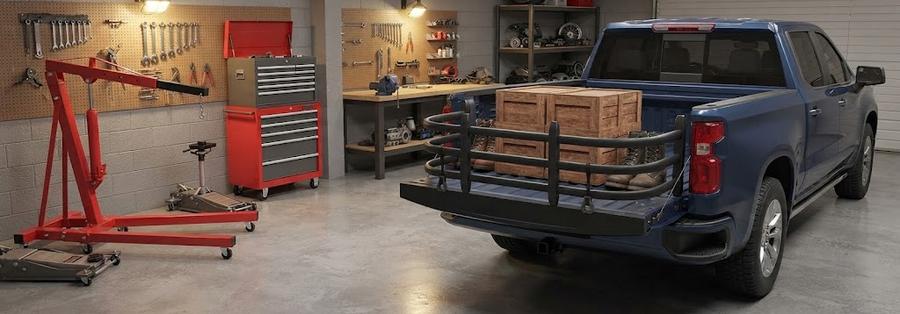

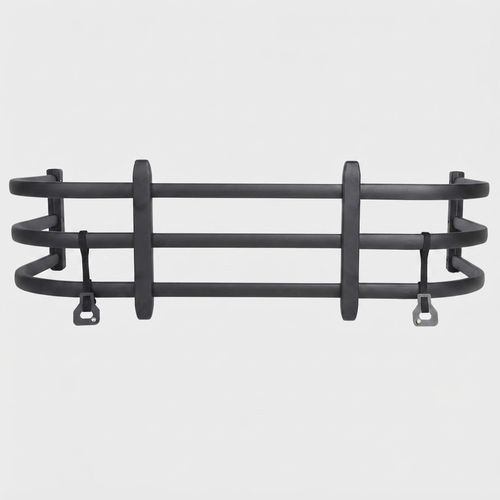

No load rating is published for the extender, so treat it as cargo support rather than a load-bearing shelf. The frame runs powder-coated 6063-T6 aluminum tubes with PA6 nylon uprights, and it ships with one bungee cord and two tie-down straps. Buyers report stripping the supplied mounting screws, so swap in hardened steel fasteners at install.

Every fuel and DEF tank here arrives with its own 12V pump, so nothing else gets bought. The 16-gallon caddy runs 3.7 GPM; the 32-gallon diesel caddy and the 48-gallon DEF tank both run 10 GPM. Tanks sold without a pump need gravity feed or a separate transfer pump, which runs slower and spills more.

DEF freezes near 12 degrees Fahrenheit and expands, so a full tank left outdoors through a hard freeze threatens the pump and fittings rather than the polyethylene shell. The tank material itself resists UV and corrosion outdoors year-round. Move it into an unheated garage or shed before a freeze, and drain the hose and pump head first.

The lift table cart rides on 4-inch swivel casters with brake locks that hold on bare concrete. On sealed epoxy a braked caster can still skid under a side push, so load and unload straight down rather than dragging across the deck. The transmission jack uses solid 360-degree swivel wheels with a center support ring for pushing.

Weight. Forty-eight gallons of DEF runs roughly 450 lbs before the tank itself, past what two people should slide across a trailer deck. Pallet pockets let a forklift or a tractor's pallet forks move a full tank safely. Filling in place and pumping from a fixed spot avoids the lifting problem entirely.

Measure cab-to-wheelwell length and the width between the wheelwells first, then match the tank footprint to it. Short beds usually take 30 to 60 gallons. The 48-gallon DEF tank and the 32-gallon diesel caddy here are built as portable roll-in units rather than permanently mounted L-tanks, so they also come back out for shed storage.

An adapter plate on a floor jack works for a light front-wheel-drive unit, at a lower rated capacity and with far less control. It cannot tilt to a bellhousing angle and it cannot chain the case down. The dedicated jack holds 1,800 lbs on a 2-stage telescopic ram with a 30-degree saddle tilt and safety chains.

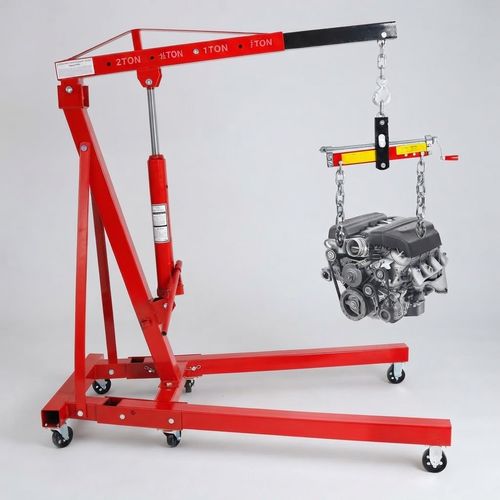

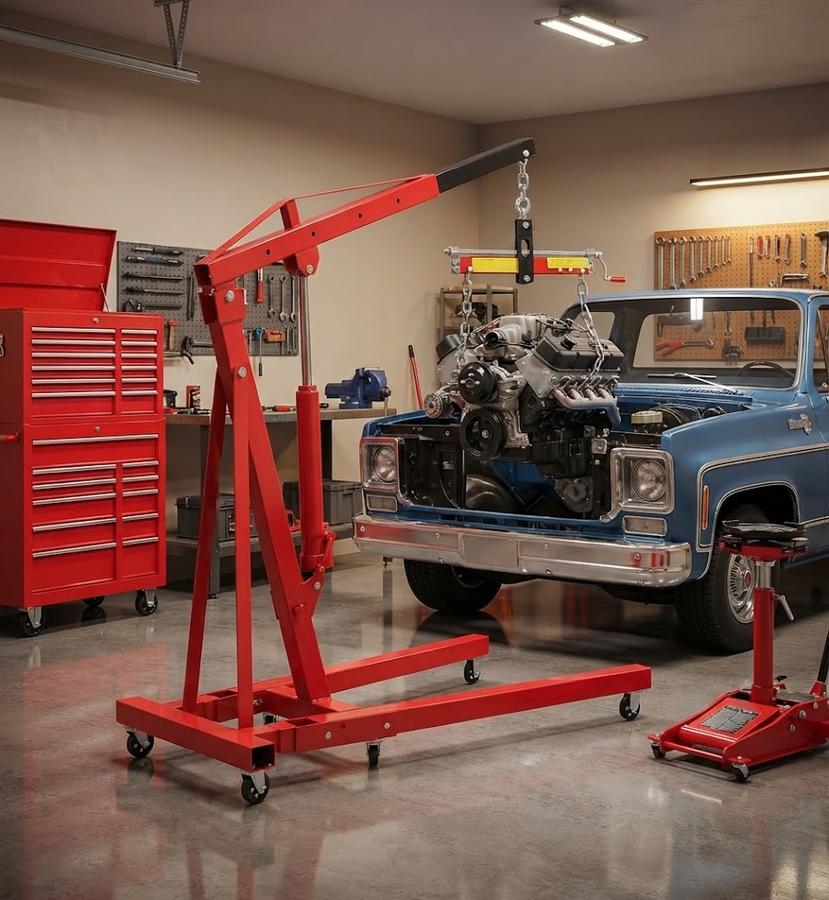

A 1-ton hoist covers four-cylinder and small six-cylinder pulls with the boom retracted. Boom extension is what eats capacity: at full reach a hoist may carry a fraction of its badge rating. This 2-ton hoist pins at 0.5, 1, 1.5, and 2 tons and holds 4,400 lbs at the shortest setting, which leaves margin on a V8.

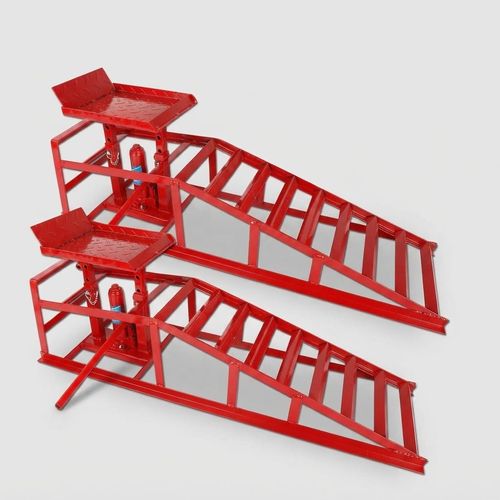

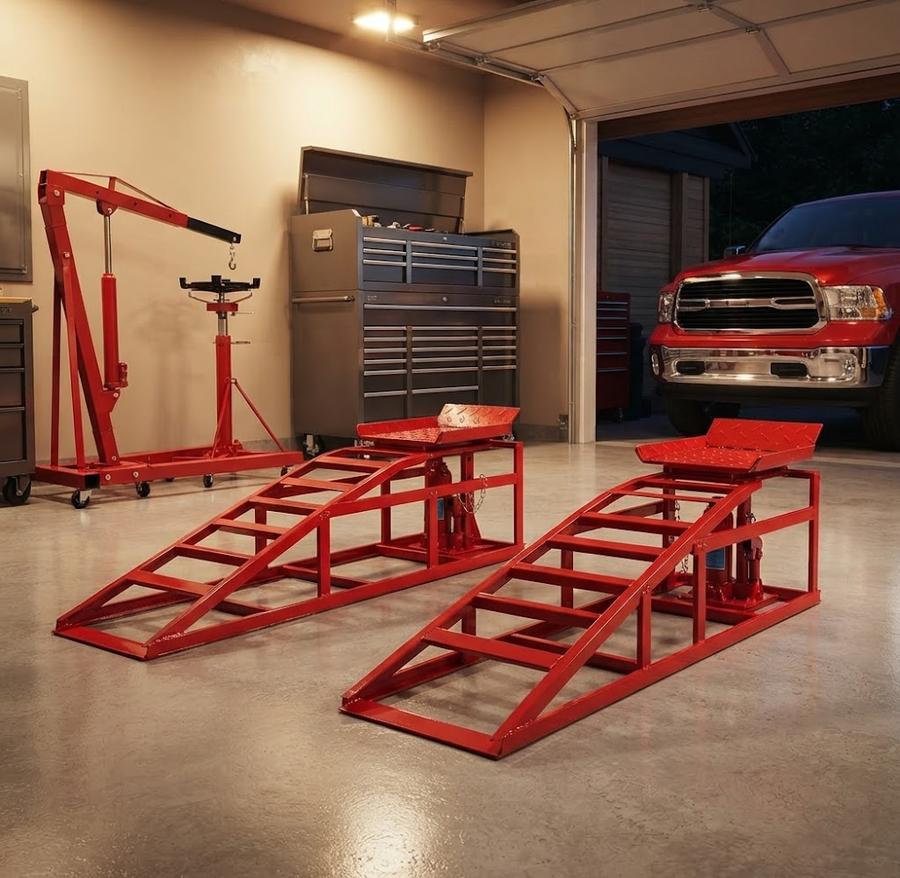

Ramps usually land cheaper than a quality jack plus a rated pair of stands, and they need no lifting at all. Stands still earn their place for wheel-off work. These ramps carry an integrated 5-ton hydraulic jack per platform, which covers the drive-up and the extra clearance without a second purchase. Check current pricing on each.

Wheels stay on, so brake and suspension work is out. Ramps also slide on smooth or dusty concrete when a tire pushes against them, and they need a straight run-up that a tight garage may not have. The 81.5-lb pair is heavy to carry, though owners in their seventies report managing it alone.

Wheel-off jobs: brakes, rotors, bearings, suspension arms. Stands also store in a fraction of the space and let you set uneven heights front to rear. Ramps win on speed for oil changes, exhaust work, and underbody inspections, where nothing comes off the hub. Plenty of garages keep both and pick by the job.

Aluminum runs lighter and shrugs off corrosion at a higher cost; steel costs less and takes more abuse but rusts once the coating chips. The tanks here use high-density polyethylene instead: it will not rust, resists dents and UV, and weighs less than steel. Metal still wins for permanent in-bed installations and DOT-permitted gasoline transport.

Diesel exhaust fluid is a urea and water solution injected into the exhaust stream, where it converts nitrogen oxides into nitrogen and water vapor. Modern diesel engines meet emissions rules with it, and they derate power when the DEF tank runs dry. Fleets keep bulk DEF on site so trucks refill without a trip to a pump.

Same tool, different names. Engine hoist, engine crane, and cherry picker all describe a wheeled hydraulic ram lifting a boom over a vehicle. The folding version here collapses flat for storage between jobs. Cherry picker also names an aerial work platform in construction, which is a completely different machine.

A handful of premium shop brands still manufacture domestically at a much higher cost. Most 2-ton folding hoists in the home-garage range, including this one, are imported. Country of origin does not track quality on its own: the checkable figures are ram capacity, boom positions, base width, and the steel gauge.

Farm operators, construction crews, fleet mechanics, and anyone refueling equipment parked away from a pump. A 16-gallon caddy covers a mower, an ATV, and a generator across one weekend. A 32-gallon diesel caddy or a 48-gallon DEF tank suits tractors, skid steers, and trucks that burn fuel faster than a can can carry.

Rated capacity is a ceiling, not a suggestion. Hydraulic rams, welds, and safety valves are sized to the stated figure, and the failure mode under a car is sudden. The engine hoist also derates as the boom extends, so its 4,400-lb rating applies at the shortest boom setting only. Pick the rating above your load, not level with it.

Homemade rigs skip the parts that keep a load from falling: an overload-protected safety valve, a chained saddle, and a wide four-leg base sized against tipping. A commercial 1,800-lb jack states its rating because someone tested to it. Under a raised vehicle, the money saved does not cover the failure mode.

Only a tank carrying a DOT permit rated for gasoline may transport it on public roads. The polyethylene tanks here are scoped to diesel and DEF, and the 32-gallon caddy is diesel-only because gasoline in a non-bonded plastic tank creates a static ignition risk. The 16-gallon caddy handles gasoline for on-site filling, not road transport.

Material appears per product: high-grade steel on the transmission jack, welded alloy steel with a powder-coated finish on the ramps, thickened alloy steel on the lift cart, powder-coated 6063-T6 aluminum with PA6 nylon on the bed extender, and high-density polyethylene on the fuel and DEF tanks. Corrosion behavior follows from that, so check it against where the equipment lives.

Metric sockets and hex keys cover most of it. Ramp owners report a T40 Torx key and a 14 mm wrench for the base bolts. The transmission jack's foot pedal arrives factory-installed, so that step disappears. For the bed extender, add a drill for the pilot holes and hardened steel screws, since buyers stripped the supplied ones.

Air in the cylinder shows up as a spongy stroke or a lift that stops short. Purge it by working the pump through full travel with no load and the valve open, several times over. Check fluid level yearly and top up with hydraulic jack oil, never brake fluid. One lift cart owner reported bleed-back after four months, so test under load before trusting it.

Contact the manufacturer through the seller messaging on the product page, which routes to the same team that ships the units. Casters, nozzles, and hoses use common sizes, so a local supply house often carries an equivalent. Note the model number stamped on the frame before ordering, because part numbers differ across the range.

No welding, no press, no shop equipment. The heaviest step is standing a hoist frame upright, which is a two-person lift at over 100 lbs of steel. Everything else bolts together with hand tools. The ramp platforms arrive welded rather than bolted, so assembly there means the base sections and the jack handles.

Cycling the pump to push trapped air out of the hydraulic circuit. Air compresses where oil will not, which is why a jack with air in the line feels spongy and stops short of full lift. Open the release valve, stroke the pedal fully a dozen times or more, then close the valve and test the range unloaded.

No assembly time is published, and inventing one would be guessing. What is stated: the transmission jack's foot pedal ships factory-installed, and the ramp platforms arrive welded rather than bolted. Both shorten the box-to-first-use path down to base hardware and handles. Read the diagram before drilling anything on the bed extender.

Hydraulic oil thickens below freezing, so the first strokes of a cold pump feel heavy and the lift creeps. Work the pump through its range unloaded before putting weight on it. Store the ram retracted so the rod stays out of the damp, and wipe the exposed chrome with light oil in an unheated garage.
